5.12kWh Solar Battery Pack With BMS For MARS I PLUS Hybrid Inverters
The MARSTEK MARS I PLUS-5.0KBAT is a 5.12 kWh LFP battery pack designed exclusively for MARSTEK MARS I PLUS hybrid inverters. Each pack stacks neatly beneath the inverter, plug-connects to the next pack with no wiring, and speaks to the MARS I PLUS V-Boost architecture over a high-voltage DC bus. Buy two for overnight coverage, four for full-day resilience, or six for a home that's off-grid-ready.
Performance is where it earns its place. Automotive-grade LiFePO₄ cells deliver over 6,000 charge cycles while retaining 80% capacity, giving you 15 years of useful life on daily cycling. The 550V V-Boost management (or 1000V on three-phase) balances every cell in real time, eliminating the weakest-cell bottleneck that limits traditional low-voltage stacks. Every kWh you install is a kWh you actually use, with up to 5kW of charging and 5kW of discharging per pack.
One battery, every stage of growth. The 5.12 kWh pack is the building block of the MARS I PLUS system, which you can buy one at a time as your home's energy appetite grows. Start with two packs when you commission your inverter (the minimum for the 6kW), and add more as you electrify your hot water, buy an EV, or bring more of your life onto solar. Stackable up to three packs per tower and expandable to four ot six packs per inverter using the MARSTEK expansion box. For homeowners building a system in stages, not all at once, this is the pack that makes staged investment actually work.
Chemistry & Longevity
- 5.12 kWh nominal capacity per pack with 5 kWh usable energy
- Automotive-grade LiFePO₄ (LFP) cells for thermal stability and long cycle life
- 6,000+ charge cycles while retaining 80% of original capacity
- 15-year design lifespan on daily cycling
- 50 Ah cell capacity across 32 battery strings per pack
Power & Performance
- 5 kW maximum charge power per pack
- 5 kW maximum discharge power per pack
- 10W standby power consumption for minimal system drain
Integration with MARS I PLUS Inverters
- Exclusively compatible with MARSTEK MARS I PLUS single-phase and three-phase hybrid inverters
- 400V nominal voltage for single-phase systems (350V–550V range)
- 800V nominal voltage for three-phase systems (650V–950V range)

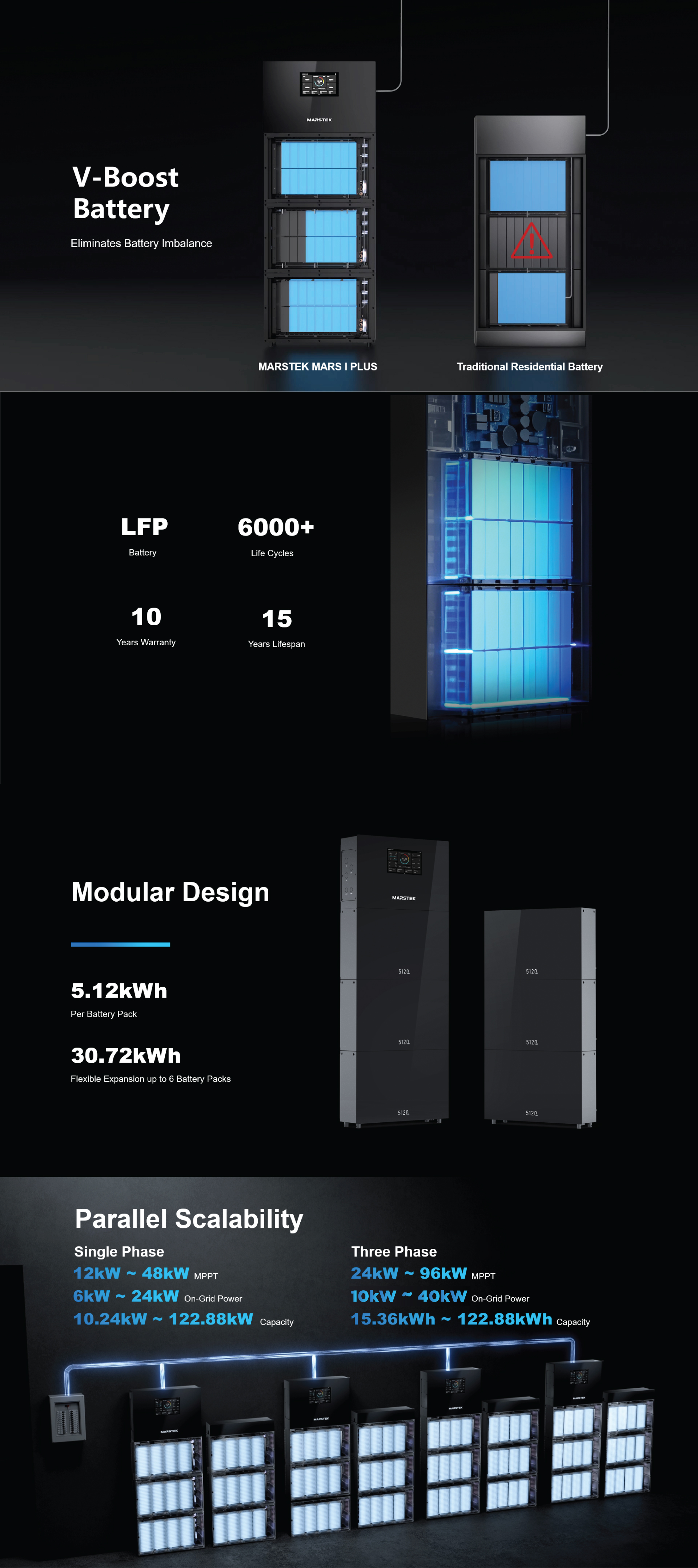

- High-voltage V-Boost architecture for real-time cell balancing and full usable capacity
- Plug-connect stacking, no external wiring between packs
- Battery Parallel CAN and Inverter Access CAN for real-time system coordination
Scalability
- Stack up to 3 packs per tower (15.36 kWh per tower)
- Expand to 4 or 6 packs per inverter using the MARSTEK expansion box, split across two towers
- Parallel with multiple inverters for up to 122.88 kWh total system capacity (4 inverters × 6 packs)
- Minimum per inverter: 2 packs for 6kW single-phase & 10kW three-phase inverter. (recommended 3 batteries)
Protection & Safety
- Cell and pack-level protection: overtemperature (OT), undertemperature (UT), overvoltage (OV), undervoltage (UV), overcurrent (OC), short-circuit (SC)
- Type II DC surge protection
Build & Design
- Dark glass and brushed-metal housing matched to the MARS I PLUS inverter
- IP65 rated for indoor or outdoor installation
- Operating range 0–100% relative humidity
- Sub-30dB operation, natural cooling, no fans
Mars I Plus 5.12kWh Solar Battery Pack with BMS is a solar battery from Marstek.
| SPECS |
| ITEM |
5.12kWh LiFePO4 Battery Module (Residential Energy Storage) |
| MODEL |
MST-MARS I PLUS-5.0KBAT |
| PERFORMANCE SPECIFICATION |
| Battery Chemistry |
LiFePO4 (Lithium Iron Phosphate) |
| Total Energy Capacity |
5.12kWh (5,120Wh) |
| Usable Energy Capacity |
5.0kWh |
| Nominal Module Voltage |
51.2V DC |
| Module Capacity |
100Ah |
| Standard Charge Voltage |
57.6V DC |
| End-of-Discharge Voltage |
40V DC |
| Max. Charge Power |
5kW |
| Max. Discharge Power |
5kW |
| Standard Charge / Discharge Current (Module) |
100A |
| CELL ARCHITECTURE |
| Cell Configuration |
16S1P (16 cells in series, 1 parallel) |
| Cell Nominal Voltage |
3.2V |
| Cell Capacity |
100Ah |
| Battery Interface |
Isolated |
| SYSTEM CONFIGURATION |
| Compatible Inverters |
Marstek Mars I Plus single-phase and three-phase hybrid inverters |
| Modules per Inverter |
1 ~ 6 PCS |
| System Capacity Range (per Inverter) |
5.12kWh ~ 30.72kWh |
| Battery System Voltage Range (Single-Phase Config) |
350V ~ 550V (Nominal 400V) |
| Battery System Voltage Range (Three-Phase Config) |
650V ~ 950V (Nominal 800V) |
| Nominal Current at System Level (Three-Phase) |
7.7A |
| PROTECTION |
| Safety Protection Features |
- Cell and Pack Over-Temperature (OT) Protection
- Cell and Pack Under-Temperature (UT) Protection
- Cell and Pack Over-Voltage (OV) Protection
- Cell and Pack Under-Voltage (UV) Protection
- Cell and Pack Over-Current (OC) Protection
- Cell and Pack Short-Circuit (SC) Protection
- Type II DC Surge Protection
|
| Protective Class |
Class I |
| GENERAL DATA |
| Dimensions (W x D x H) |
628mm x 195mm x 390mm
|
| Weight |
63kg |
| Charging Temperature Range |
-5°C ~ +55°C |
| Discharging Temperature Range |
-20°C ~ +60°C |
| Relative Humidity Range |
0 ~ 100% |
| Cooling |
Natural Cooling |
| Standby Power Consumption |
10W |
| IP Rating |
IP65 |
| Noise Level |
30dB |
| Communication |
- Battery Parallel CAN
- Inverter Access CAN (Internal)
|
| STANDARD COMPLIANCE (NZ / AU) |
| Battery Safety Standard |
IEC 62619:2022 (Industrial Lithium Battery Safety) |
| Functional Safety |
IEC/EN 60730-1 |
| Energy Storage Safety |
IEC/EN 63056 |
| EMC Standard |
IEC/EN 61000-6-1-4 Class B |
| Transport Certification |
UN 38.3 |
| CB Test Report |
CBP2510WDG0002 (Bureau Veritas Shenzhen, issued 24 December 2025) |
| Cell Certification |
IEC 62619:2022 (Cell model GSP50160119F, CB Cert No. SG PSB-BT-04339) |
| CEC (Clean Energy Council) Listing |
In progress, expected June 2026 |
Important Installation Note:
Please note that this is not a DIY product. For safety, compliance, and optimal performance, all solar panels, inverters, batteries, and EV chargers must be installed by a certified/approved installer.
All systems require design by a qualified solar professional to ensure maximum efficiency and energy optimisation.
However, specified outputs reflect optimal conditions, but actual performance will vary depending on site-specific factors including installation environment, orientation, shading, and weather.
If you are purchasing an installation from Trade Depot, see our full installation T&C's.

SDoC:https://trade-depot.s3.ap-southeast-2.amazonaws.com/files/products/manuals/371203_SDoC.pdf;Specs Sheet:https://trade-depot.s3.ap-southeast-2.amazonaws.com/files/products/manuals/371203_Specs_Sheet.pdf
